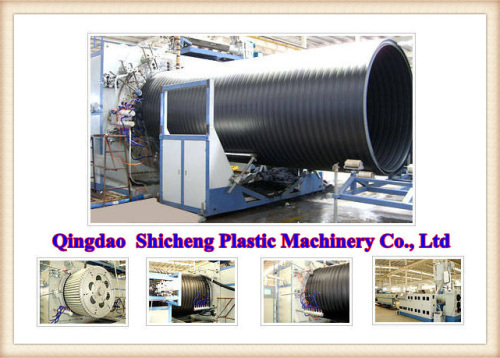

High quality-HDPE large-diameter winding pipe making machinery (SCSJ)

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SC-SJ

Production Capacity: 60 sets per year

Delivery Date: 50 working days after recei...

Use: Others

Means of Transport: Ocean

Packing: In seaworthy packing

Plastic Type: PP/PE

Extruder: Single screw extruder

High quality-HDPE large-diameter winding pipe making machinery (SCSJ)
High quality and high function
Stable character
Long life

High quality-HDPE large-diameter winding pipe making machinery (SCSJ)

1. About Pipe:

Properties and advantages: HDPE large diameter water drainage pipes are of high rigidity, light weight, low costs, good sealing performance of the connector; acid and alkali resistance, corrosion-resistance, and long service life, convenient for construction. The pipe is widely used as the underground water drainage system.

2. ABOUT MACHINE:

The screw is the double-stage pressure reduction type, with special elements to promote the mixing plasticization, coordinated with the highly precise temperature control and high torque, the line can use full recyclable material. The two machines combined type feeding, spiral rotation foamed and high efficiency compound crafts ensure a high quality product. The special plastic and steel compounding technology ensures a reliable compounding, which highly enhances the pipe performance. The adjustable extruder frame is easy and flexible to operate. The PLC automatic control system is reliable and convenient for maintenance.

Technical parameters

Model
Pipe Spec. (mm)
Max. output(kg/h)
Outline size (L X W X H) (m)
SG-800
Φ200-800
280
8X20X2.6
SG-1200
Φ600-1200
500
10X23X2.7
SG-1500
Φ1000-1500
600
28X18X6
SG-2000
Φ1500-2000
700
30X20X7
SG-3000
Φ2000-3000
800
32X20X8
